Blackout Greenhouse
Created with Pixso.

Fully Automated Light Deprivation Greenhouses With Blackout System For Herb

Fully Automated Light Deprivation Greenhouses With Blackout System For Herb

Brand Name: SAINPOLY
Model Number: 001
MOQ: 300
Price: $20-30/㎡
Payment Terms: T/T,D/P,D/A,L/C
Supply Ability: 10000 square meter
Detail Information
Place of Origin:
China
Certification:
Certificate of Compliance
Type:
Single/Multi-span
Instruction For Use:
Planting Of Crops Adapted To Total Darkness
Cover Material:
Polyolefin Knitted Mesh
Place Of Origin:
Place Of Origin
Brand Name:
SAINPOLY
Advantage:
100% Darkness
Layer:
3 Layers
Ventilation:
Roof Ventilation+side Ventilation
Structure:
Hot Dip Galvanized Steel Structure
Packaging Details:
Container
Highlight:

Fully Automated Light Deprivation Greenhouses

,

Blackout System Light Deprivation Greenhouse

,

light dep greenhouse For Herb

Product Description



Light Deprivation Greenhouse Blackout Greenhouse with Blackout System for Herb Mushroom Vegetable Flower


Brief Introduction

* The surface of the greenhouse is covered with a layer of transparent plastic film, and there is an automatic Blackout system inside, which covers three layers of full shading nets.

* In order to save costs, it is also possible to cover only one or more layers of black and white plastic film on the outermost layer, and no shading net is installed inside.

* Ventilation windows can be installed on the top and around the greenhouse, and equipped with a cooling system and a circulation fan. The cooling system is equipped with a light trap device.




Product name

Blackout Greenhouse



Single span Width



8/10.8/12m



Single bay width



4m



Height of Greenhouse



4.5-7.5m



Wind resistance



120km/m2



Snow resistance



30-55kg/m2



Max Rain Quantity



140mm/h



Crop loading



15-30kg/m2

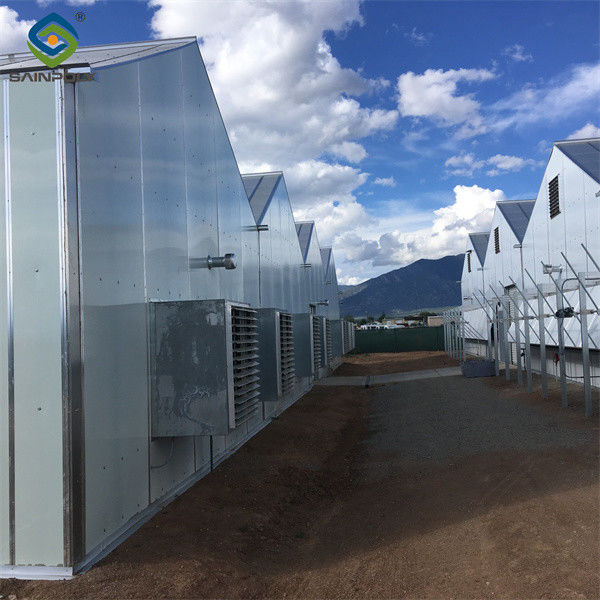

Fully Automated Light Deprivation Greenhouses With Blackout System For Herb 0






Greenhouse System




1. Ventilation System

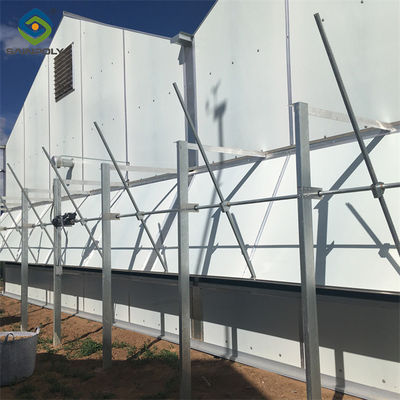

                                                                                                                                                                Fully Automated Light Deprivation Greenhouses With Blackout System For Herb 1





a).The film roll device drives the film roll rod to move up and down along the climber to realize the opening and closing of the window.



b).Divided into side ventilation system and roof ventilation system.







2. Cooling System

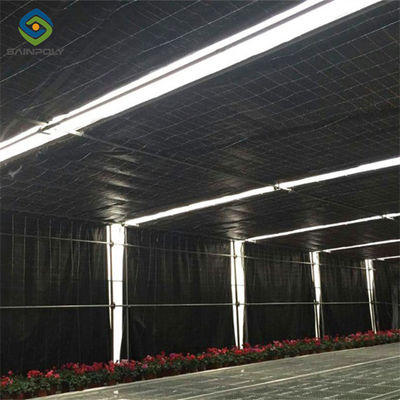

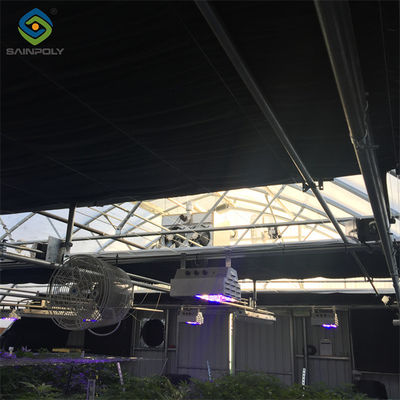

                Fully Automated Light Deprivation Greenhouses With Blackout System For Herb 2                Fully Automated Light Deprivation Greenhouses With Blackout System For Herb 3




Cooling Pad&Fan System of Agricultural Greenhouse:



a).The exhaust fans eject the air from the greenhouse , negative pressure formed in the greenhouse.



b).The air enters the greenhouse through the cooling pads, resulting in the effects of cooling, moistening and air-dedusting.



c).Exhaust fans and cooling pad are covered with hoods.





3. Lighting System




Fully Automated Light Deprivation Greenhouses With Blackout System For Herb 4





a). Equipped with German VS lamp holder, more stable quality



b). German aluminum reflector, high reflection efficiency, anti - oxidation



c). Die-cast housing has better heat dissipation and water resistance




4.Fertilization system





Fully Automated Light Deprivation Greenhouses With Blackout System For Herb 5    Fully Automated Light Deprivation Greenhouses With Blackout System For Herb 6




You can choose the corresponding type according to actual needs, manual type, electric type, smart type,

and can be connected to mobile phones and computers for remote control.





5. Rolling bench



Rolling bench of greenhouse, the support legs are made by galvanized steel tubes,

outline of the seedbed aluminum-alloy material.

The surface is made by Industrial plastic tray.

Height of it can be slightly adjusted, and it is equipped with the anti-overturn device and location limiting device.

Rolling bench has better effect for planting and growing.







Fully Automated Light Deprivation Greenhouses With Blackout System For Herb 7


















Company Profile



• Weifang Sainpoly Greenhouse Equipment Co.,Ltd.



1.Weifang Sainpoly GreenhouseEquipment Co.. Ltd.

2.Established in 1997;

3.Partners in 72 countries, including theUnited States, Uzbekistan, France, SaudiArabia, Japan;

4.The factory covers an area of 16,000square meters;

5.90% ofthe products are produced andsold by ourselves;

6.The annual production capacityis 100 hectares;



Fully Automated Light Deprivation Greenhouses With Blackout System For Herb 8






FAQ



Q1: Are you a trading company or a manufacturer?

A: We are a factory. Our factory produces all items related to the greenhouse, so we provide the best price.



Q2: Do you provide samples? Is it free or extra?

A: Yes, we can provide samples for free, but we don't bear the freight.



Q3: How to get a quotation for the greenhouse?

A: Please let us know how many greenhouses are needed? What will be grown in the greenhouse? So that we can suggest related systems.



Q4: How should I choose a greenhouse system?

A: Please let us know where the greenhouse is (temperature, wind speed).



Q5: How to assemble the greenhouse when purchasing?

A:We have professional after-sales service engineers who will provide planning drawings and installation manuals. You can communicate with him from time to time. If necessary, we can also send engineers to your country to supervise the installation of the greenhouse. Please send a message for specific details.






If necessary, we can also send engineers to your country to supervise the installation of the greenhouse.

Please send a message for specific details.
