Blackout Greenhouse
Created with Pixso.

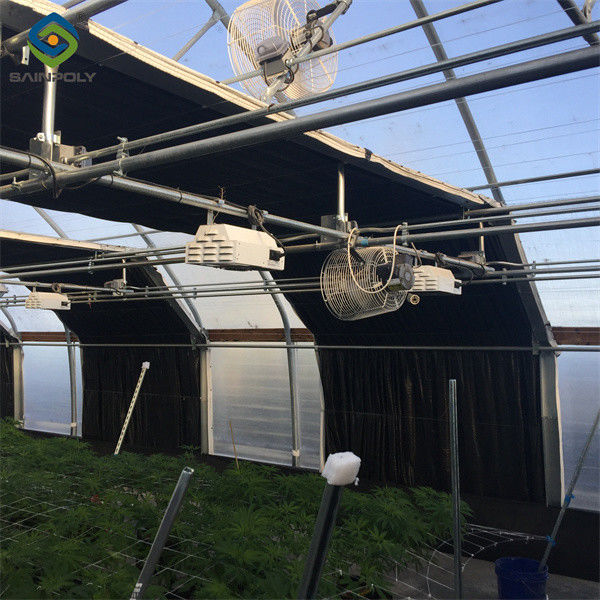

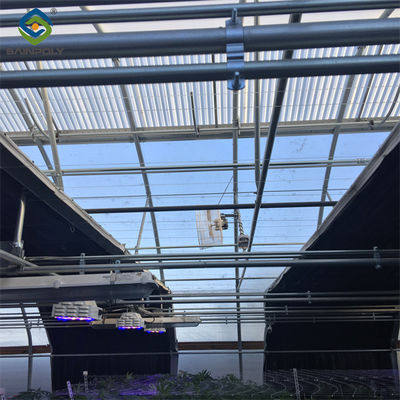

Popular Modern Blackout System Greenhouse Full Dark With Systems

Popular Modern Blackout System Greenhouse Full Dark With Systems

Brand Name: SAINPOLY
Model Number: 001
MOQ: 300
Price: $20-30/㎡
Payment Terms: T/T,D/P,D/A,L/C
Supply Ability: 10000 square meter
Detail Information
Place of Origin:
China
Certification:
Certificate of Compliance
Size:
Large
Type:
Single/Multi-span
Instruction For Use:
Planting Of Crops Adapted To Total Darkness
Cover Material:
Polyolefin Knitted Mesh
Place Of Origin:
Place Of Origin
Brand Name:
SAINPOLY
Advantage:
100% Darkness
Layer:
3 Layers
Ventilation:
Roof Ventilation+side Ventilation
Structure:
Hot Dip Galvanized Steel Structure
MOQ:
300sqm
Packaging Details:
Container
Highlight:

Modern Blackout System Greenhouse

,

Blackout System Greenhouse Full Dark

,

Full Dark Modern Greenhouse

Product Description



Popular modern light deprivation blackout greenhouse full dark with systems


Brief Introduction


Product Advantages:

1.100% LIGHT PROOF: 3-layer internal light curtain

2.AUTOMATIC OPERATIONE: equipped with control cabinet

3.STRONG WIND AND SNOW RESISTANCE: 7 connecting rods with stronger wind and snow resistance

4.MORE HEAT PRESERVATION: 8mm thick PC board with stronger thermal insulation and longer service life




Product name

Blackout Greenhouse


Single span Width


8/10.8/12m


Single bay width


4m


Height of Greenhouse


4.5-7.5m


Wind resistance


120km/m2


Snow resistance


30-55kg/m2


Max Rain Quantity


140mm/h


Crop loading


15-30kg/m2



Popular Modern Blackout System Greenhouse Full Dark With Systems 0




Greenhouse System



1. Ventilation System



Popular Modern Blackout System Greenhouse Full Dark With Systems 1





a).The film roll device drives the film roll rod to move up and down along the climber to realize the opening and closing of the window.


b).Divided into side ventilation system and roof ventilation system.




2. Cooling System



                Popular Modern Blackout System Greenhouse Full Dark With Systems 2                Popular Modern Blackout System Greenhouse Full Dark With Systems 3




Cooling Pad&Fan System of Agricultural Greenhouse:


a).The exhaust fans eject the air from the greenhouse , negative pressure formed in the greenhouse.


b).The air enters the greenhouse through the cooling pads, resulting in the effects of cooling, moistening and air-dedusting.


c).Exhaust fans and cooling pad are covered with hoods.




3. Lighting System




Popular Modern Blackout System Greenhouse Full Dark With Systems 4




a). Equipped with German VS lamp holder, more stable quality


b). German aluminum reflector, high reflection efficiency, anti - oxidation


c). Die-cast housing has better heat dissipation and water resistance




4.Fertilization system



Popular Modern Blackout System Greenhouse Full Dark With Systems 5    Popular Modern Blackout System Greenhouse Full Dark With Systems 6



You can choose the corresponding type according to actual needs, manual type, electric type, smart type,

and can be connected to mobile phones and computers for remote control.

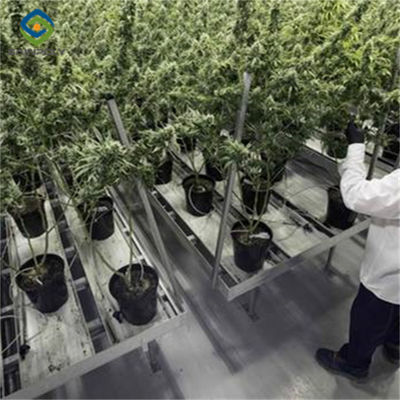

5. Rolling bench


Rolling bench of greenhouse, the support legs are made by galvanized steel tubes,

outline of the seedbed aluminum-alloy material.

The surface is made by Industrial plastic tray.

Height of it can be slightly adjusted, and it is equipped with the anti-overturn device and location limiting device.

Rolling bench has better effect for planting and growing.




Popular Modern Blackout System Greenhouse Full Dark With Systems 7





6. Other Systems



Popular Modern Blackout System Greenhouse Full Dark With Systems 8





Our Certificates


Popular Modern Blackout System Greenhouse Full Dark With Systems 9









Company Profile


• Weifang Sainpoly Greenhouse Equipment Co.,Ltd.


1.Weifang Sainpoly GreenhouseEquipment Co.. Ltd.

2.Established in 1997;

3.Partners in 72 countries, including theUnited States, Uzbekistan, France, SaudiArabia, Japan;

4.The factory covers an area of 16,000square meters;

5.90% ofthe products are produced andsold by ourselves;

6.The annual production capacityis 100 hectares;


Popular Modern Blackout System Greenhouse Full Dark With Systems 10





FAQ


Q1: Are you a trading company or a manufacturer?

A: We are a factory. Our factory produces all items related to the greenhouse, so we provide the best price.


Q2: Do you provide samples? Is it free or extra?

A: Yes, we can provide samples for free, but we don't bear the freight.


Q3: How to get a quotation for the greenhouse?

A: Please let us know how many greenhouses are needed? What will be grown in the greenhouse? So that we can suggest related systems.


Q4: How should I choose a greenhouse system?

A: Please let us know where the greenhouse is (temperature, wind speed).


Q5: How to assemble the greenhouse when purchasing?

A:We have professional after-sales service engineers who will provide planning drawings and installation manuals. You can communicate with him from time to time. If necessary, we can also send engineers to your country to supervise the installation of the greenhouse. Please send a message for specific details.




If necessary, we can also send engineers to your country to supervise the installation of the greenhouse.

Please send a message for specific details.
