Blackout Greenhouse
Created with Pixso.

Customized Standard Blackout System Greenhouses 4.5-7.5m Height

Customized Standard Blackout System Greenhouses 4.5-7.5m Height

Brand Name: SAINPOLY
Model Number: 001
MOQ: 300
Price: $20-30/㎡
Payment Terms: T/T,D/P,D/A,L/C
Supply Ability: 10000 square meter
Detail Information
Place of Origin:
China
Certification:
Certificate of Compliance
Size:
Large
Type:
Single/Multi-span
Instruction For Use:
Planting Of Crops Adapted To Total Darkness
Cover Material:
Polyolefin Knitted Mesh
Place Of Origin:
Place Of Origin
Brand Name:
SAINPOLY
Advantage:
100% Darkness
Layer:
3 Layers
Ventilation:
Roof Ventilation+side Ventilation
Structure:
Hot Dip Galvanized Steel Structure
MOQ:
300sqm
Packaging Details:
Container
Highlight:

Customized Blackout System Greenhouses

,

Blackout System Greenhouses

,

7.5m Height black out greenhouse

Product Description



The industry low price customized type standard blackout system greenhouses


Brief Introduction

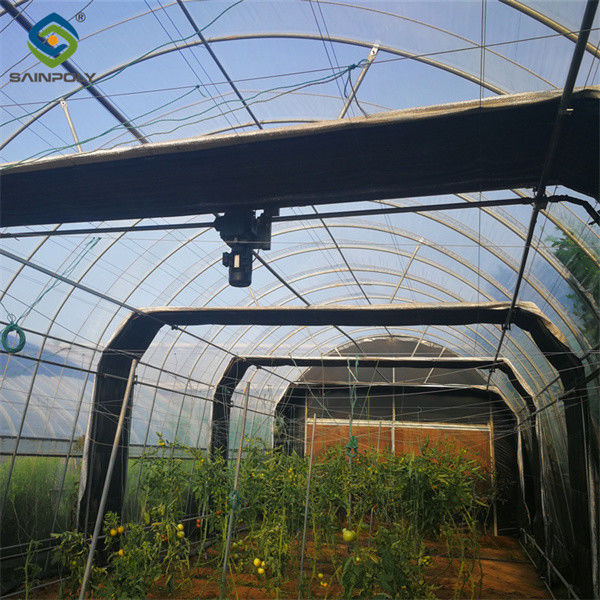

Steel pipe polycarbonate commercial greenhouses with blackout system uses blackout material with controlled exposure to light and darkness to simulate seasonal changes. Automating light and darkness tricks the plants into flowering on command, reducing the time to reach maturity which allows year-round cultivation with multiple harvests.

Small Plastic Greenhouse/LED Light Blackout Greenhouse is designed for the perfect controlled growing environment. We utilize state-of-the-art light deprivation fabrics along with environmental control equipment to help regulate temperature, humidity, fertigation, CO2 and light levels. Our light deprivation curtains assist in blocking out incoming light while also helping eliminate light pollution when extending photo periods at night. Additionally, this fabric doubles as an energy curtain and can help reduce night time heating costs by up to 33%.




Product name

Blackout Greenhouse


Single span Width


8/10.8/12m


Single bay width


4m


Height of Greenhouse


4.5-7.5m


Wind resistance


120km/m2


Snow resistance


30-55kg/m2


Max Rain Quantity


140mm/h


Crop loading


15-30kg/m2





Customized Standard Blackout System Greenhouses 4.5-7.5m Height 0





Greenhouse System



1. Ventilation System



Customized Standard Blackout System Greenhouses 4.5-7.5m Height 1





a).The film roll device drives the film roll rod to move up and down along the climber to realize the opening and closing of the window.


b).Divided into side ventilation system and roof ventilation system.




2. Cooling System



                Customized Standard Blackout System Greenhouses 4.5-7.5m Height 2                Customized Standard Blackout System Greenhouses 4.5-7.5m Height 3




Cooling Pad&Fan System of Agricultural Greenhouse:


a).The exhaust fans eject the air from the greenhouse , negative pressure formed in the greenhouse.


b).The air enters the greenhouse through the cooling pads, resulting in the effects of cooling, moistening and air-dedusting.


c).Exhaust fans and cooling pad are covered with hoods.

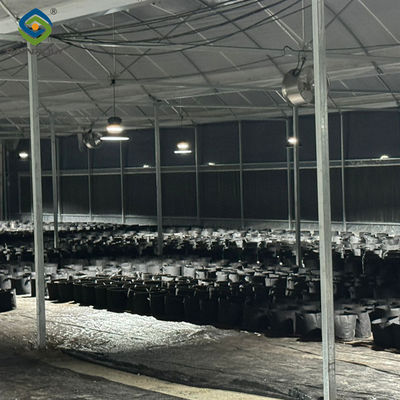

3. Lighting System




Customized Standard Blackout System Greenhouses 4.5-7.5m Height 4





a). Equipped with German VS lamp holder, more stable quality


b). German aluminum reflector, high reflection efficiency, anti - oxidation


c). Die-cast housing has better heat dissipation and water resistance





4. Rolling bench


Rolling bench of greenhouse, the support legs are made by galvanized steel tubes,

outline of the seedbed aluminum-alloy material.

The surface is made by Industrial plastic tray.

Height of it can be slightly adjusted, and it is equipped with the anti-overturn device and location limiting device.

Rolling bench has better effect for planting and growing.




Customized Standard Blackout System Greenhouses 4.5-7.5m Height 5





5. Other Systems



Customized Standard Blackout System Greenhouses 4.5-7.5m Height 6





Our Certificates


Customized Standard Blackout System Greenhouses 4.5-7.5m Height 7



Packing & Delivery



Packing

The normal package is tube nude cargo , accessories is carton package . We will pack it according to customers special request.


Delivery

(1) Way : Sea or land transport

(2) Time : According to the current production line and the greenhouse area arrangement ,the normal 800-2000sqm . Production time is about 30 working days . (please consult us for the specific time).


Customized Standard Blackout System Greenhouses 4.5-7.5m Height 8






Company Profile


• Weifang Sainpoly Greenhouse Equipment Co.,Ltd.


Founded in 1997, focus on the research and development and production of greenhouse structural parts, and the overall planning of the greenhouse.

Has been committed to providing customers with more professional and considerate services.


• In 2013, brands such as "SAINPOLY" were established.

"SAINPOLY" is committed to providing customers with Nice quality greenhouse planning solutions, and has won many praises with its product quality and technical advantages.


• The company's partners are all over the United States, Uzbekistan, France, Saudi Arabia, Japan, UAE, Saudi Arabia and other 72 countries.

According to the climatic environment of different countries, build the ideal greenhouse for customers.


• 16,000 square meters workshop area, 90% of the products are self-produced, and the production capacity is 100Hectares per year. The company focuses on developing professional technology, providing thoughtful services, forming excellent partners, forging ahead and moving forward.


Customized Standard Blackout System Greenhouses 4.5-7.5m Height 9
