Hydroponic Greenhouse
Created with Pixso.

Agricultural NFT Vertical Growing Greenhouse Soilless Greenhouse Multi Span

Agricultural NFT Vertical Growing Greenhouse Soilless Greenhouse Multi Span

Brand Name: SAINPOLY
MOQ: 500
Price: $15-20/㎡
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: Over 100 hectare
Detail Information
Place of Origin:
Shandong,China
Certification:
CE
Size:
Large
Type:
Multi-Span Agricultural Greenhouses
Instruction For Use:
Used For Hydroponic Plant
Place Of Origin:
Shandong,China
Product Name:
Hydroponic Growing Systems
Application:
Vegetable Fruits
Material:
Hot Galvanized Steel Frame Structure
Packaging Details:
Bulk or Container
Highlight:

NFT Vertical Growing Greenhouse

,

NFT Soilless Greenhouse

,

Soilless Greenhouse Multi Span

Product Description

Agriculture Greenhouse Technology Multi-Span Greenhouse With Hydroponic Growing Systems



Product Description


Substrate cultivation is the largest method in soilless cultivation. It fixes crop in organic or inorganic substrate, by method of dripping or trickle irrigation, and supplies crops nutrient solution. Culture substrate can be filled into a plastic bag, or laid in the cultivation channels or grooves. Substrate culture nutrient solution can avoid the spread of disease through the circulation of nutrient solution.
Hydroponic refers to plant roots in direct contact with nutrient solution without substrate cultivation.


Its principle is making a very thin layer of nutrient solution, continue to cycle through the crop roots, not only to ensure a continuous supply of crop water and nutrient, but also to ensure a continuous supply of fresh Oxygen.



                                                                               Agricultural NFT Vertical Growing Greenhouse Soilless Greenhouse Multi Span 0Agricultural NFT Vertical Growing Greenhouse Soilless Greenhouse Multi Span 1



Advantages
Why choose hydroponics?
1. save the land
2. save the water
3. save the labor
4. save the fertilizer
5. save the pesticide , friendly of environment
6.high production
7.product harmony. Little waste
8. High quality and more safety
9. All the growing conditions can be controlled


Details Images


Liquid Cultivation System

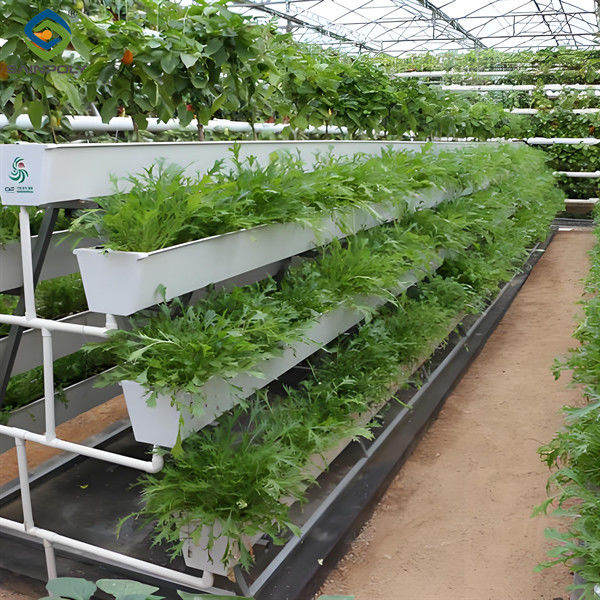

A-frame Cultivation: pipes or gutter, water or Substrate
Bottom width: about 1.4m, Height: about 1.8m, Length 2m to 8m, or as required. Layer: 5 or 7 layers.







Planting   pipes or  gutter

Frame

Frame Layer

Width

Length

Height

PVC/PE/PP

stainless steel or gavalnized   steel

5 or 7
layers(customize)

1.4-1.5m / set(customize)

2-8m(customize)

1.6-1.8m(customize)





                                                                                                                                      Agricultural NFT Vertical Growing Greenhouse Soilless Greenhouse Multi Span 2

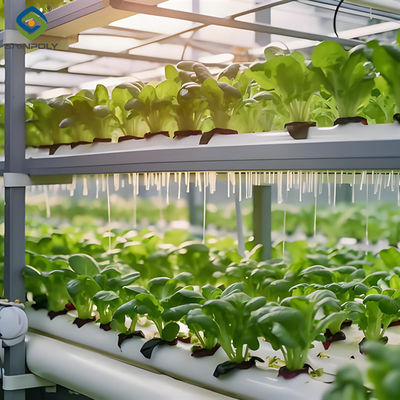

Flate Pipes Cultivation



planting pipes

frame

length

width

PVC

hot gavalnized

2-200m

as required

Details

PVC pipes as joint pipe, planting pipe Ø75, return pipe Ø75, inlet pipe Ø25;
frame(welded), taper ring, joint, elbow Ø75, tee Ø75,
valve, pressure compensator, planting cup Ø32





                                                                                                                                      Agricultural NFT Vertical Growing Greenhouse Soilless Greenhouse Multi Span 3

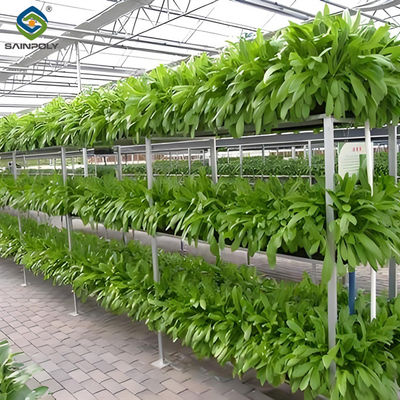

NFT Cultivation

Deep flow cultivation, Shallow flow cultivation, Seeding bed



Agricultural NFT Vertical Growing Greenhouse Soilless Greenhouse Multi Span 4

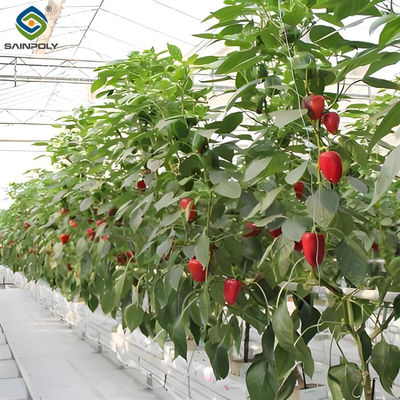

Substrate Cultivation


Mainly used for growing tomatoes,cucumbers,watermelons,chili peppers,and other equivalent crops





                                                                                                                                         Agricultural NFT Vertical Growing Greenhouse Soilless Greenhouse Multi Span 5




Greenhouse System


Cooling System

Agricultural NFT Vertical Growing Greenhouse Soilless Greenhouse Multi Span 6


Cooling Pad&Fan System of Agricultural Greenhouse:
1-Cooling fans and cooling pads are popular for cooling;
2- Humidity rate is increased and temperature is down by 5-10℃;
3-The cooling fans is on one wall while the cooling pad in the opposite;
4-Circulation fan is optional.


Fertilization system:



Agricultural NFT Vertical Growing Greenhouse Soilless Greenhouse Multi Span 7


1-You can choose the corresponding type according to actual needs, manual type, electric type, smart type, and can be connected to mobile phones and computers for remote control.
2-More details will be shown in the proposal.



Other Systems



Agricultural NFT Vertical Growing Greenhouse Soilless Greenhouse Multi Span 8



Our certificates



Agricultural NFT Vertical Growing Greenhouse Soilless Greenhouse Multi Span 9


Company Profile


1.Weifang Sainpoly GreenhouseEquipment Co.. Ltd.
2.Established in 1997;
3.Partners in 72 countries, including theUnited States, Uzbekistan, France, SaudiArabia, Japan;
4.The factory covers an area of 16,000square meters;
5.90% ofthe products are produced andsold by ourselves;
6.The annual production capacityis 100 hectares;


                                                                       Agricultural NFT Vertical Growing Greenhouse Soilless Greenhouse Multi Span 10Agricultural NFT Vertical Growing Greenhouse Soilless Greenhouse Multi Span 11



Thanks for visiting.

If you need any questions about greenhouse, please contact us.

Hope to cooperate with you and offer a satisfied greenhouse for you.
