Blackout Greenhouse
Created with Pixso.

Large Smart Automated Light Deprivation Greenhouse For Agriculture

Large Smart Automated Light Deprivation Greenhouse For Agriculture

Brand Name: SAINPOLY
Model Number: 001
MOQ: 300
Price: $20-30/㎡
Payment Terms: T/T,D/P,D/A,L/C
Supply Ability: 10000 square meter
Detail Information
Place of Origin:
China
Certification:
Certificate of Compliance
Size:
Large
Type:
Single/Multi-span
Instruction For Use:
Planting Of Crops Adapted To Total Darkness
Cover Material:
Polyolefin Knitted Mesh
Place Of Origin:
Place Of Origin
Brand Name:
SAINPOLY
Advantage:
100% Darkness
Layer:
3 Layers
Ventilation:
Roof Ventilation+side Ventilation
Structure:
Hot Dip Galvanized Steel Structure
MOQ:
300sqm
Packaging Details:
Container
Highlight:

Automated Light Deprivation Greenhouse

,

Smart Light Deprivation Greenhouse

,

Agriculture light dep greenhouse

Product Description



 Smart Automated Light Deprivation Greenhouse For Agriculture



Brief Introduction

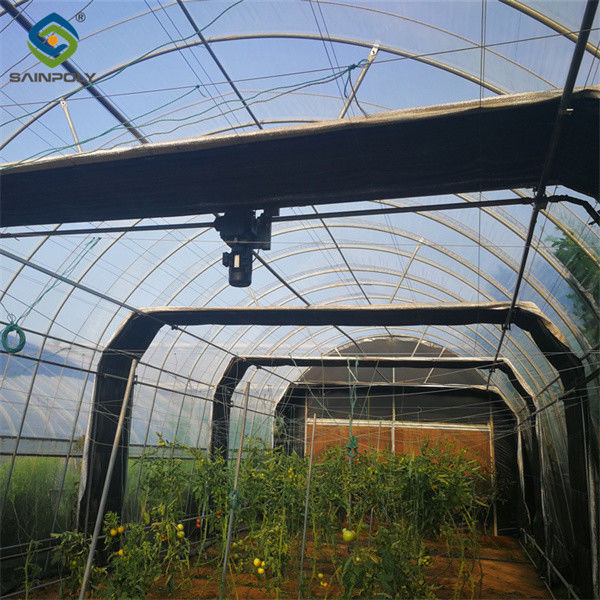

Light deprivation greenhouses, also known as all blackout greenhouse. Refers to the installation of an all-black system frame in the original greenhouse skeleton to create a black, breath able interior environment.The system is flexible and can be electrically controlled.



Application:


All-black system can be installed in any type ofgreenhouse, which is simple and easy to operate.It can be used for crops that require an all-black environment, such as mushroom and other crops.



The frame structure is simple, cheap cost and easy to install.

According to the climatic condition, it usually equiped with sidewall roll up units to achieve good ventilation and cooling effective.





Product name

Blackout Greenhouse



Single span Width



8/10.8/12m



Single bay width



4m



Height of Greenhouse



4.5-7.5m



Wind resistance



120km/m2



Snow resistance



30-55kg/m2



Max Rain Quantity



140mm/h



Crop loading



15-30kg/m2













Large Smart Automated Light Deprivation Greenhouse For Agriculture 0





Greenhouse System





1. Ventilation System





Large Smart Automated Light Deprivation Greenhouse For Agriculture 1









a).The film roll device drives the film roll rod to move up and down along the climber to realize the opening and closing of the window.



b).Divided into side ventilation system and roof ventilation system.

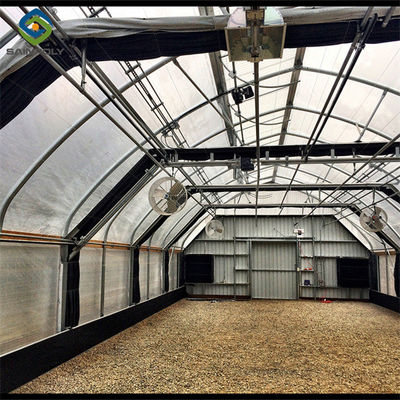

2. Cooling System





                Large Smart Automated Light Deprivation Greenhouse For Agriculture 2                Large Smart Automated Light Deprivation Greenhouse For Agriculture 3







Cooling Pad&Fan System of Agricultural Greenhouse:



a).The exhaust fans eject the air from the greenhouse , negative pressure formed in the greenhouse.



b).The air enters the greenhouse through the cooling pads, resulting in the effects of cooling, moistening and air-dedusting.



c).Exhaust fans and cooling pad are covered with hoods.

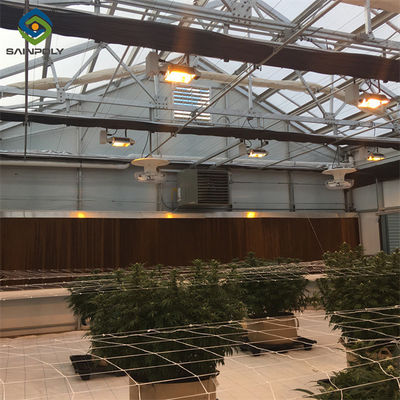

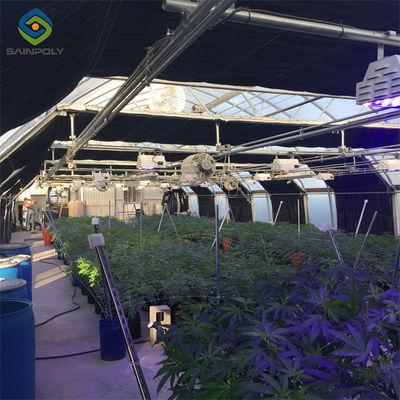

3. Lighting System





Large Smart Automated Light Deprivation Greenhouse For Agriculture 4







a). Equipped with German VS lamp holder, more stable quality



b). German aluminum reflector, high reflection efficiency, anti - oxidation



c). Die-cast housing has better heat dissipation and water resistance







4.Fertilization system





Large Smart Automated Light Deprivation Greenhouse For Agriculture 5    Large Smart Automated Light Deprivation Greenhouse For Agriculture 6





You can choose the corresponding type according to actual needs, manual type, electric type, smart type,

and can be connected to mobile phones and computers for remote control.





5. Rolling bench



Rolling bench of greenhouse, the support legs are made by galvanized steel tubes,

outline of the seedbed aluminum-alloy material.

The surface is made by Industrial plastic tray.

Height of it can be slightly adjusted, and it is equipped with the anti-overturn device and location limiting device.

Rolling bench has better effect for planting and growing.







Large Smart Automated Light Deprivation Greenhouse For Agriculture 7









6. Other Systems





Large Smart Automated Light Deprivation Greenhouse For Agriculture 8
